HX-UL12V2-6W-R130 | LED INGROUND

HX-UL12V2-6W-R130,HX-UL12V2-9W-R130,HX-UL12V2-9W-R160,HX-UL12V2-12W-R160,HX-UL12V2-12W-R180,HX-UL12V2-15W-R180,HX-UL12V2-18W-R200,HX-UL12V2-24W-R200

To print

BASIC INFORMATION:
LED Inground light 6W 9W 12W 15W 18W 24W
LED: EPISTAR
Driver: IC driver
Housing: Aluminium alloy body+tempered glass cover+stainless steel cover
Application: Road, Street, project lighting, etc.

Inquiry

TECHNICAL CHARACTERISTICS

E6518093B62DF2F3B9792113DA27B879

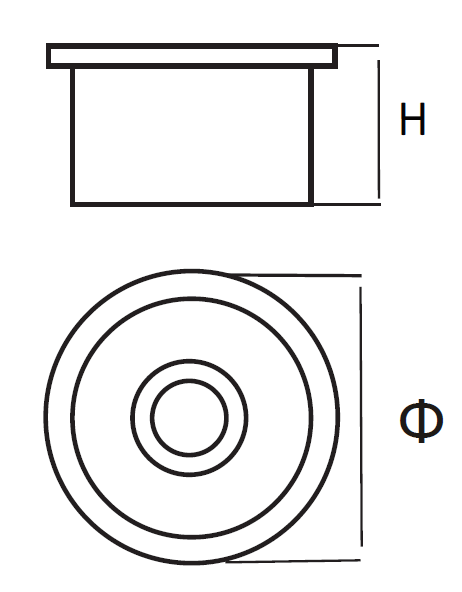

CodePower AngleC.C.T.Size
LED Inground light 6W 12V,IP68
HX-UL12V2-6W-R1306W30°3000K/4000K/6500KΦ130*38*H75mm
HX-UL12V2-9W-R1309W30°3000K/4000K/6500KΦ130*38*H75mm
HX-UL12V2-9W-R1609W30°3000K/4000K/6500KΦ160*38*H85mm
HX-UL12V2-12W-R16012W30°3000K/4000K/6500KΦ160*38*H85mm
HX-UL12V2-12W-R18012W30°3000K/4000K/6500KΦ180*50*H85mm
CodePower AngleC.C.T.Size
LED Inground light 15W 12V,IP68
HX-UL12V2-15W-R18015W30°3000K/4000K/6500KΦ180*50*H85mm
HX-UL12V2-18W-R20018W30°3000K/4000K/6500KΦ200*61*H85mm
HX-UL12V2-24W-R20024W30°3000K/4000K/6500KΦ200*61*H85mm
