LPL09-S10-R110-1.0 | LED PANEL LIGHT

LPL09-S10-R110-1.0,LPL09-S15-R140-1.0,LPL09-S20-R180-1.0...

To print

BASIC INFORMATION:

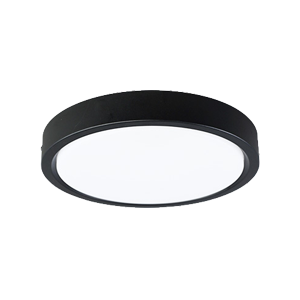

Surface LED Panel light,10W 15W 20W 30W 48W
Driver: Non-isolated driver
Housing: Iron base + PP diffuser
Application: Indoor lighting, household,etc

Inquiry

TECHNICAL CHARACTERISTICS

Code	Input	Power	DF	Lumen	C.R.I	Size
Surface LED Panel light,50/60Hz,SDCM<5,120°,3000K/4000K/6000K
LPL09-S10-R110-1.0	165-265V	10W	0.5	80lm/W	80	Ф110*H38mm
LPL09-S15-R140-1.0	165-265V	15W	0.5	80lm/W	80	Ф140*H38mm
LPL09-S20-R180-1.0	165-265V	20W	0.5	80lm/W	80	Ф178*H38mm
LPL09-S30-R230-1.0	165-265V	30W	0.5	80lm/W	80	Ф230*H38mm
LPL09-S48-R295-1.0	165-265V	48W	0.5	80lm/W	80	Ф295*H38mm

Code	Input	Power	DF	Lumen	C.R.I	Size
Surface LED Panel light,50/60Hz,SDCM<5,120°,3000K/4000K/6000K
LPL09-S20-R180-0.7	165-265V	20W	0.5	80lm/W	80	Ф178*H38mm
LPL09-S30-R230-0.7	165-265V	30W	0.5	80lm/W	80	Ф230*H38mm
LPL09-S48-R295-0.7	165-265V	48W	0.5	80lm/W	80	Ф295*H38mm
