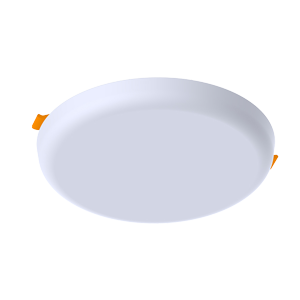

LPL10-10-RR100 ICN | LED PANEL LIGHT

LPL10-10-RR100 ICN,LPL10-18-RR120 ICN,LPL10-24-RR170 ICN,LPL10-36-RR225 ICN

BASIC INFORMATION:
Frameless LED Panel Light,10W 18W 24W 36W,IEC | EN standard quality,Slim design and great workmanship,High light efficiency 100lm/W
Installation: Side light emitting

LED: Gold-wired LED2835

Driver: Independent CC driver
Housing: PP housing, PP diffuser
Application: indoor lighting, household,etc

Inquiry

TECHNICAL CHARACTERISTICS

Code	Input	Power	DF	Lumen	C.R.I	Cut	Size
LED Panel Light, 50/60Hz,SDCM<5,120°
LPL10-10-RR100 ICN	175-265V	10W	0.55	1800lm	75	Φ50-90mm	Φ100*H20mm
LPL10-18-RR120 ICN	175-265V	18W	0.55	1800lm	75	Φ50-110mm	Φ120*H20mm
LPL10-24-RR170 ICN	175-265V	24W	0.55	2400lm	75	Φ50-158mm	Φ168*H20mm
LPL10-36-RR225 ICN	175-265V	36W	0.55	3600lm	75	Φ65-215mm	Φ225*H20mm
