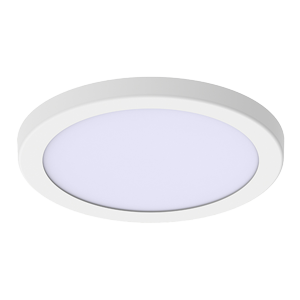

LPL03-4-R80 ICN | LED PANEL LIGHT

LPL03-4-R80 ICN,LPL03-6-R100 ICN,LPL03-8-R118 ICN...

To print

BASIC INFORMATION:
LED panel light,4W 6W 8W 15W 20W 30W,Slim design and great workmanship,Long life design
Installation: Recessed

LED: 20PCS SMD2835(Gold-wired)

Driver: IC driver
Housing: PC frame+ aluminum shell+ glass LGP
Application: Indoor lighting

Inquiry

TECHNICAL CHARACTERISTICS

Code	Input	Power	DF	Lumen	C.R.I	Cut	Size
LED panel light, 50/60Hz,SDCM<5,180°
LPL03-4-R80 ICN	175-265V	4W	0.5	202lm	70	Φ50-70mm	Φ80*H20mm
LPL03-6-R100 ICN	175-265V	6W	0.5	350lm	70	Φ50-90mm	Φ100*H20mm
LPL03-8-R118 ICN	175-265V	8W	0.5	480lm	70	Φ50-100mm	Φ118*H20mm
LPL03-15-R175 ICN	175-265V	15W	0.5	1020lm	70	Φ50-160mm	Φ175*H20mm

Code	Input	Power	DF	Lumen	C.R.I	Cut	Size
LED panel light, 50/60Hz,SDCM<5,180°
LPL03-20-R230 ICN	175-265V	20W	0.5	1500lm	70	Φ50-210mm	Φ230*H20mm
LPL03-20-R230 ICN	175-265V	30W	0.5	2367lm	70	Φ50-270mm	Φ300*H20mm
