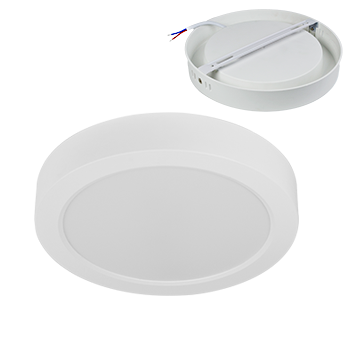

PLA RS | LED PANEL LIGHT

BASIC INFORMATION:
Plastic surface LED downlight
Installation: Recessed
Connection: With input wire
LED: SMD2835
Driver: DOB CC driver
Housing: Plastic, PMMA
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.
Certificate: CE


eel

TECHNICAL CHARACTERISTICS

CE-LVD:  EN 62560: 2012, EN 62471: 2008, EN 62473 :2015
CE-EMC: EN 55015: 2013, EN 61547: 2009, EN 61000-3-2:2014, EN 61000-3-3:2013
RoHS Directive:  2011/65/EU
ERP & EEL:  (EU)2019/2020, (EU)2019/2015

CodeInputPower DF Lumen C.R.IC.C.T.Φ*HIP
Plastic Round surface LED downlight
LRS-S4-98100-240V4 W0.5240lm82WW/NW/WH98*25mm 44
LRS-S6-120100-240V6 W0.7390lm82WW/NW/WH120*25mm44
LRS-S9-145100-240V9 W0.7630lm82WW/NW/WH145*25mm44
LRS-S15-175100-240V15 W0.71200lm82WW/NW/WH175*25mm 44
LRS-S20-225100-240V20 W0.71800lm82WW/NW/WH225*25mm44
