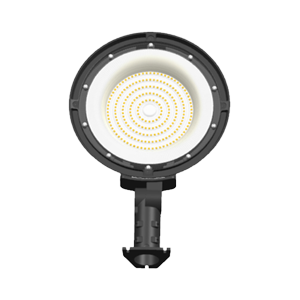

LGL03-S100 | LED Gargen Light

LGL03-S100-DOB,LGL03-S100-LIC,LGL04-S100-LIC...

To print

BASIC INFORMATION:
LED Gargen Lights 100W 150W 200W
Installation: Surfaced
LED: SMD2835/3030
Driver: DOB Driver/LIC Driver
Housing: Aluminum
Application: Outdoor use,Garden, street, etc.

CCT

Inquiry

TECHNICAL CHARACTERISTICS

Light-sensitive dimming
Adjustable angle
Surge protection: 2.5KV/4KV

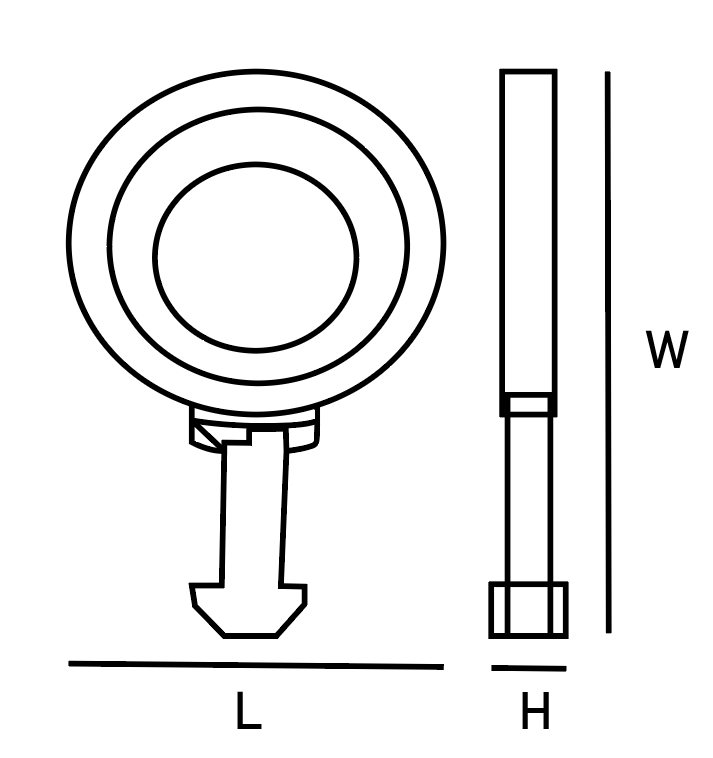

Code	Input	Power	PF	Lumen	C.R.I	Size
LED Downlight 50/60Hz,SDCM<5, 90°,IP65,3000/4000/6000K
LGL03-S100-DOB	100-277V	100W	0.5	140-150LM/W	80	L390W240H45mm
LGL03-S150-DOB	100-277V	150W	0.5	140-150LM/W	80	L415W270H45mm
LGL03-S200-DOB	100-277V	200W	0.5	140-150LM/W	80	L545W302H45mm

Code	Input	Power	PF	Lumen	C.R.I	Size
LED Downlight 50/60Hz,SDCM<5, 90°,IP65,3000/4000/6000K
LGL03-S100-LIC	220-240V	100W	0.5	140-150LM/W	80	L390W240H45mm
LGL03-S150-LIC	220-240V	150W	0.5	140-150LM/W	80	L415W270H45mm
LGL03-S200-LIC	220-240V	200W	0.5	140-150LM/W	80	L545W302H45mm

Code	Input	Power	PF	Lumen	C.R.I	Size
LED Downlight 50/60Hz,SDCM<5, 90°,IP65,3000-4000-6000K
LGL04-S100-LIC	220-240V	100W	0.5	130-140LM/W	80	L390W240H45mm
LGL04-S150-LIC	220-240V	150W	0.5	130-140LM/W	80	L415W270H45mm
LGL04-S200-LIC	220-240V	200W	0.5	130-140LM/W	80	L545W302H45mm
