PLA Genone-R | LED DOWNLIGHT

LRDL-PA01-S05,LRDL-PA01-S10,LRDL-PA01-S12,LRDL-PA01-S15

To print

BASIC INFORMATION:
Plastic LED downlight 60° Round 5-15W
Installation: Recessed
Color: Single
Connection: External driver
LED board: Aluminium
LED: SMD2835
Driver: Constant current IC
Housing: PC body, Aluminium shell inside, PC lens
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.
Certificate: CE, RoHS

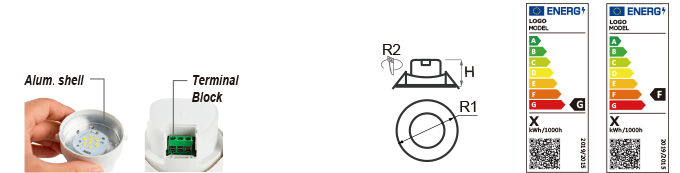

top mid pic.png

TECHNICAL CHARACTERISTICS

EMC Directive 2014/30/EU
EN 55015:2013 + A1:2015, EN 61547:2009, EN 61000-3-2:2014, EN 61000-3-3:2013

LVD Directive 2014/35/EU
EN 60598-2-2:2012, EN 60598-1:2015, EN 62471:2008

RoHS Directive 2011/65/EU
EuP Directive 2009/125/EC


led downlight middle content

CodeInputPower PF Lumen C.R.IC.C.T.Φ*HΦ1Dim
5W Rotatable Round LED downlight 38°/60° IP20/IP44
LRDL-PA01-S05100-240V5 W0.5400lm803000K90mm76mmOption
LRDL-PA01-S05100-240V5 W0.5400lm804000K90mm76mmOption
LRDL-PA01-S05100-240V5 W0.5400lm806500K90mm76mmOption
CodeInputPower PF Lumen C.R.IC.C.T.Φ*HΦ1Dim
7W Rotatable Round LED downlight 38°/60° IP20/IP44
LRDL-PA01-S07100-240V7 W0.5560lm803000K90mm76mmOption
LRDL-PA01-S07100-240V7 W0.5560lm804000K90mm76mmOption
LRDL-PA01-S07100-240V7 W0.5560lm806500K90mm76mmOption
CodeInputPower PF Lumen C.R.IC.C.T.Φ*HΦ1Dim
9W Rotatable Round LED downlight 60° IP20/IP44
LRDL-PA01-S09100-240V7 W0.5720lm803000K118mm90mmOption
LRDL-PA01-S09100-240V7 W0.5720lm804000K118mm90mmOption
LRDL-PA01-S09100-240V7 W0.5720lm806500K118mm90mmOption
CodeInputPower PF Lumen C.R.IC.C.T.Φ*HΦ1Dim
12W Rotatable Round LED downlight 60° IP20/IP44
LRDL-PA01-S12100-240V12 W0.5960lm803000K138mm120mmOption
LRDL-PA01-S12100-240V12 W0.5960lm804000K138mm120mmOption
LRDL-PA01-S12100-240V12 W0.5960lm806500K138mm120mmOption
