LED Downlight 2302 series | LED DOWNLIGHT

To print

BASIC INFORMATION:

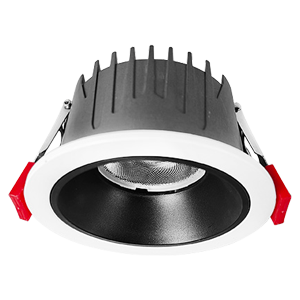

LED Downlight 2302 series
Installation: Recessed
Size: Ф85*H49mm
Connection: External driver
LED board: Aluminium
LED: SMD2835
Driver: Isolated Driver
Housing: Diecast Aluminum body
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.
Certificate: CE, RoHS

Inquiry

TECHNICAL CHARACTERISTICS

Directive (LVD) -2014/35/EU
Directive (EMC)-2014/30/EU
Directive (RoHS)-2011/65/EU (EU)2015/863

Directive (EuP)-2009/125/EC
EN 60598-1:2015 +A1:2018
EN 60598- 2-1:1989
EN 62493:2015
EN 62471:2008
EN 55015:2013 +A1:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 61547:2009
EN 50581:2012



CodeInputPower PF Lumen C.R.IC.C.T.IP GradeControl Mode
LED Downlight 2302 series
LDL-C10-D85 2302C85-220V10 W0.5850LM803000KIP20Non-dim
LDL-C10-D85 2302C85-220V10 W0.5850LM804000KIP20Non-dim
LDL-C10-D85 2302C85-220V10 W0.5850LM806500KIP20Non-dim
