LSDL01-10-R55 ICNC | LED DOWNLIGHT

LSDL01-10-R55 ICNC,LSDL01-15-R75 ICNC,LSDL01-20-R95 ICNC,LSDL01-25-R115 ICNC

BASIC INFORMATION:
LED Spotlight 10W 15W 20W 25W
Installation: Surfaced
Color: White/Black
LED: COB-Bridgelux Prudential Lighting
Driver: Lifud Round filling drive
Housing: Aluminium+Plastic
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.

Inquiry

TECHNICAL CHARACTERISTICS

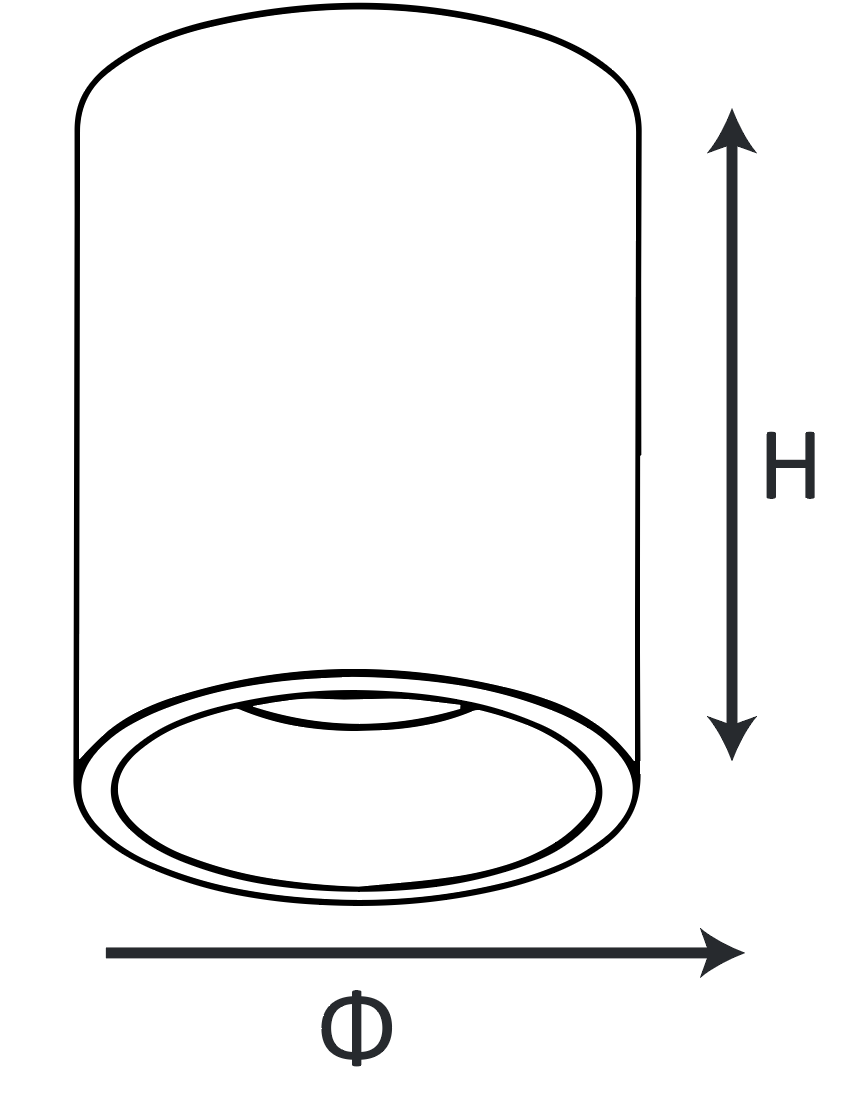

Code	Input	Power	PF	Lumen	C.R.I	Size
Surfaced LED Spotlight 50/60Hz,15°/30°/45°
LSDL01-10-R55 ICNC	100-240V	10W	0.9	800lm	90	Φ55*H100mm
LSDL01-15-R75 ICNC	100-240V	15W	0.9	1275lm	90	Φ75*H130mm
LSDL01-20-R95 ICNC	100-240V	20W	0.9	1900lm	90	Φ95*H150mm
LSDL01-25-R115 ICNC	100-240V	25W	0.9	2375lm	90	Φ115*H160mm
