LRDL01-15-S90 ICNC | LED DOWNLIGHT

LRDL01-15-S90 ICNC,LRDL01-25-S110 ICNC,LRDL01-35-S135 ICNC

To print

BASIC INFORMATION:
LED Downlight, 15W 25W 35W,IEC|EN standard quality,Slim design and injection workmanship,High light efficiency 90lm/W

LED: Gold-wired with Copper stent
Driver: Independent IC driver
Housing: Alum housing, PC diffuser
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.

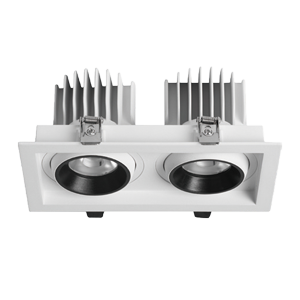

LRDL01-2X15-S170 ICNC(300)

Inquiry

TECHNICAL CHARACTERISTICS

LRDL01-15-S90 ICNC

CodeInputPower PF Lumen C.R.ICut out.Size
LED Downlight SDCM<5,36°,50/60Hz
LRDL01-15-S90 ICNC175-265V15W0.91200lm82L80*W80mmL90*W90*H75mm
LRDL01-25-S110 ICNC175-265V25W0.92000lm82L100*W100mmL115*W115*H95mm
LRDL01-35-S135 ICNC175-265V35W0.92800lm82L120*120mmL140*W140*H120mm
CodeInputPower PF Lumen C.R.ICut out.Size
LED Downlight SDCM<5,36°,50/60Hz
LRDL01-2X15-S170 ICNC175-265V30W0.92400lm82L155*W80mmL170*W90*H75mm
LRDL01-2X25-S215 ICNC175-265V50W0.94000lm82L190*W80mmL215*W90*H75mm
LRDL01-2X35-S255 ICNC175-265V70W0.95600lm82L235*W80mmL255*W90*H75mm
