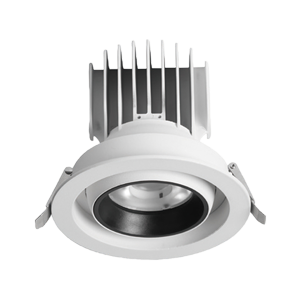

LRDL01-15-R90 ICNC | LED DOWNLIGHT

LRDL01-15-R90 ICNC,LRDL01-25-R110 ICNC,LRDL01-35-R135 ICNC

BASIC INFORMATION:
LED Downlight 15W 25W 35W,IEC|EN standard quality,Slim design and injection workmanship,COB package technology

LED: Gold-wired with Copper stent
Driver: Independent IC driver
Housing: Alum housing, PC diffuser
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.

Inquiry

TECHNICAL CHARACTERISTICS

LRDL01-15-R90 ICNC

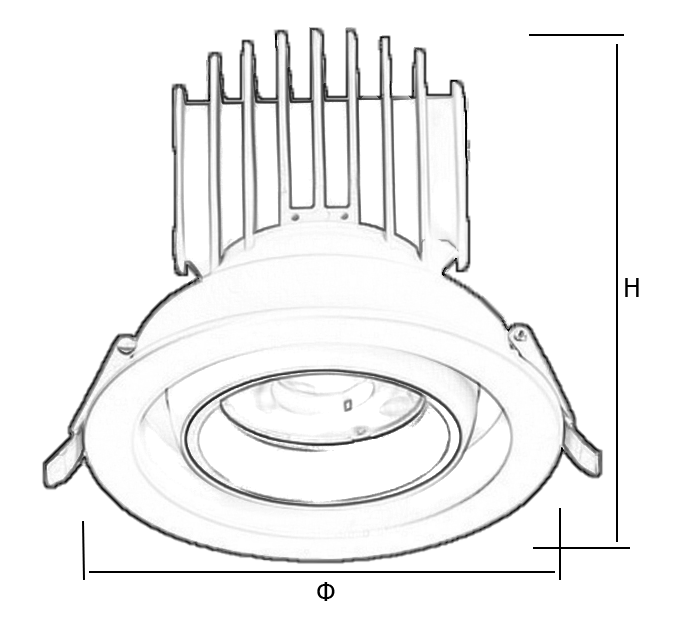

Code	Input	Power	PF	Lumen	C.R.I	Cut out.	Size
LED Downlight SDCM<5,36°,50/60Hz
LRDL01-15-R90 ICNC	175-265V	15W	0.9	1200lm	82	Ø80mm	Φ90*H75mm
LRDL01-25-R110 ICNC	175-265V	25W	0.9	2000lm	82	Ø100mm	Φ110*H95mm
LRDL01-35-R135 ICNC	175-265V	35W	0.9	2800lm	82	Ø120mm	Φ135*H120mm
