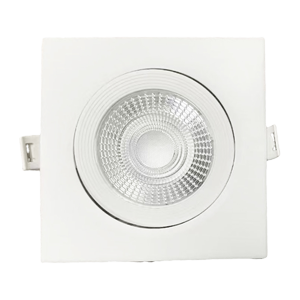

LRDL-PA06-S3R-ICDN | LED DOWNLIGHT

LRDL-PA06-S3R-ICDN,LRDL-PA06-S5R-ICDN,LRDL-PA06-S7R-ICDN,LRDL-PA06-S9R-ICDN...

To print

BASIC INFORMATION:
LED downlight  Round 3W 5W 7W 9W
LED: SMD2835
Driver: DOB IC driver
Housing: PP body,PS cover
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.



LRDL-PA06-S3S-ICDN(300)

Inquiry

TECHNICAL CHARACTERISTICS

00FB2FADFEF74B2FCA906AEB91A86728387743987329A32BC3388EE2B70BDA5F

CodeInputPower PF Lumen C.R.ICut out.Size
LED downlight SDCM<5,38°,50/60Hz
LRDL-PA06-S3R-ICDN100-240V3W0.5240lm80Ø60mmΦ75*H14mm
LRDL-PA06-S5R-ICDN100-240V5W0.5400lm80Ø75mmΦ89*H14mm
LRDL-PA06-S7R-ICDN100-240V7W0.5560lm80Ø75mmΦ89*H14mm
LRDL-PA06-S7RD-ICDN100-240V7W0.5560lm80Ø75mmΦ114*H15mm
LRDL-PA06-S9R-ICDN100-240V9W0.5720lm80Ø92mmΦ114*H15mm
CodeInputPower PF Lumen C.R.ICut out.Size
LED downlight SDCM<5,38°,50/60Hz
LRDL-PA06-S3S-ICDN100-240V3W0.5240lm8060*60mmL75*W75*H14mm
LRDL-PA06-S5S-ICDN100-240V5W0.5400lm8075*75mmL89*W89*H14mm
LRDL-PA06-S7S-ICDN100-240V7W0.5560lm8075*75mmL89*W89*H14mm
LRDL-PA06-S7SD-ICDN100-240V7W0.5560lm8075*75mmL114*W114*H15mm
LRDL-PA06-S9S-ICDN100-240V9W0.5720lm8092*92mmL114*W114*H15mm
