LSDL-PA01-S5-LIC 5W 7W | LED DOWNLIGHT

LSDL-PA01-S5-LIC,LSDL-PA01-S7-LIC

BASIC INFORMATION:

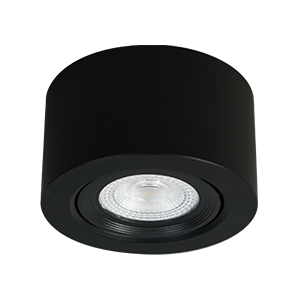

Rotatable LED downlight 60° Round 5W 7W
Installation: Surfaced
Color: White/Black
LED: Gold-wired with Copper stent
Driver: Linear IC driver
Housing: PBT+Alum housing, PC lens
Application: Home, Shops, Supermarket, restaurants, hotels, coffee bar,etc.

LSDL-PA01-S5-LIC(300)1

Inquiry

TECHNICAL CHARACTERISTICS

EMC Directive 2014/30/EU
EN 55015:2013 + A1:2015, EN 61547:2009, EN 61000-3-2:2014, EN 61000-3-3:2013

LVD Directive 2014/35/EU
EN 60598-2-2:2012, EN 60598-1:2015, EN 62471:2008

RoHS Directive 2011/65/EU
EuP Directive 2009/125/EC

d8e8796d38ca7f7140ffd0cb490c932e

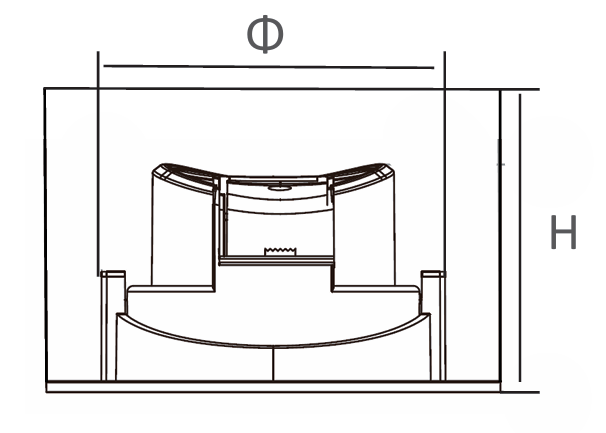

Code	Input	Power	PF	Lumen	C.R.I	C.C.T.	Size
Surfaced Rotatable LED downlight 60°,SDCM<5,50/60Hz
LSDL-PA01-S5-LIC	220-240V	5W	0.5	425lm	80	3000K/4000K/6000K	Φ95*H50mm
LSDL-PA01-S7-LIC	220-240V	7W	0.5	595lm	80	3000K/4000K/6000K	Φ95*H50mm
