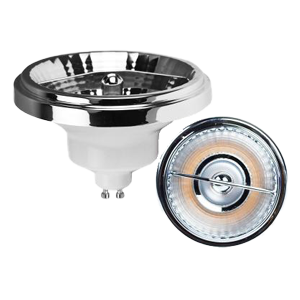

LED AR70 7W 12W 15W 24° 38° | AR111

HX-C12F-AR111, HX-C15F-AR111, HX-C12F-AR111C,HX-S12-AR11-IC,HX-C7F-AR70

Power: 7W 12W 15W
Body: PLA+Alum body
Diffuser: Polycarbonate
LED: Gold-wired with Copper stent
Driver: Linear IC driver
Base: GU10
Beam angle: 24° ,38°

Inquiry

TECHNICAL CHARACTERISTICS

b583ead056c422e73be4558c5d7a43f7

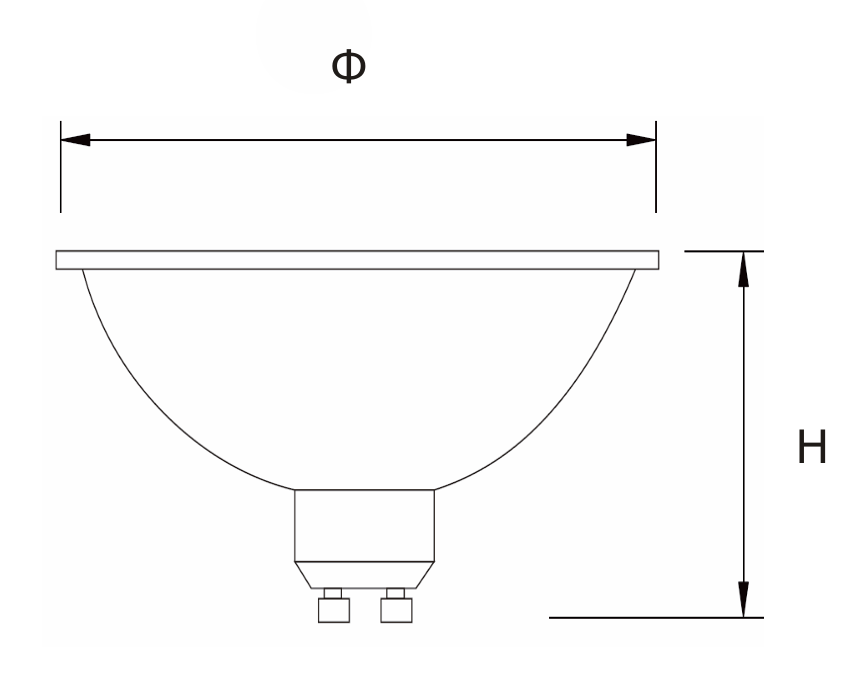

Code	Input	Power	PF	Total Lumen	C.R.I	Angle	Size
LED AR70 50/60Hz,7W,12W,15W
HX-C7F-AR70	175-265V	7W	0.5	600lm	80	24°	Φ70*H72mm
HX-C12F-AR111	175-265V	12W	0.5	1050lm	80	24°	Φ111*H75mm
HX-C12F-AR111C	175-265V	12W	0.5	950lm	80	38°	Φ111*H66mm
HX-C12F-AR111C-TDM	175-265V	12W	0.5	1050lm	80	38°	Φ111*H66mm
HX-C15F-AR111	175-265V	15W	0.5	1300lm	80	24°	Φ111*H75mm
