LED T-lamp,HX-S10G-T60E-A | T lamp

HX-S10G-T60E-A,HX-S10G-T60E-B,HX-S15G-T70E-A,HX-S15G-T70E-B...

To print

BASIC INFORMATION:

LED T-lamp,IEC standard size,Safety light,Cusomized function,Gold-wired with Copper stent

Power: 10W 15W 20W 30W 40W 50W 60W
Base: E27
Driver: DOB IC driver
Beam angle: 220°
Housing: PP+Alu coated PBT

Inquiry

TECHNICAL CHARACTERISTICS

HX-S10G-T60E-B

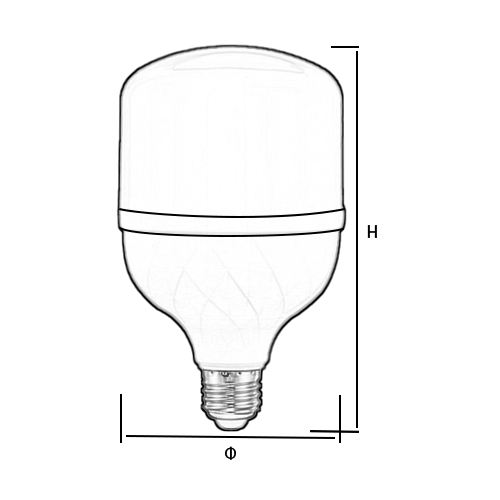

Code	Power	PF	Lumen	C.R.I	Size
LED T-lamp AC165-265V, 50/60Hz
HX-S10G-T60E-A	10W	0.5	89.2lm/W	80	Φ60*H115mm
HX-S10G-T60E-B	10W	0.5	97.5lm/W	80	Φ60*H110mm
HX-S15G-T70E-A	15W	0.5	90.4lm/W	80	Φ70*H125mm
HX-S15G-T70E-B	15W	0.5	98.8lm/W	80	Φ70*H120mm

Code	Power	PF	Lumen	C.R.I	Size
LED T-lamp AC165-265V, 50/60Hz
HX-S20G-T80E-A	20W	0.5	96.7lm/W	80	Φ80*H135mm
HX-S20G-T80E-B	20W	0.5	102.4lm/W	80	Φ80*H135mm
HX-S30G-T100E-A	30W	0.5	98.9lm/W	80	Φ100*H155mm
HX-S30G-T100E-B	30W	0.5	104lm/W	80	Φ100*H165mm

Code	Power	PF	Lumen	C.R.I	Size
LED T-lamp AC165-265V, 50/60Hz
HX-S40G-T115E-A	40W	0.5	93.5lm/W	80	Φ115*H185mm
HX-S40G-T115E-B	40W	0.5	105.7lm/W	80	Φ115*H185mm
HX-S50G-T125E-A	50W	0.5	96.3lm/W	80	Φ125*H200mm
HX-S50G-T125E-B	50W	0.5	105lm/W	80	Φ125*H200mm
