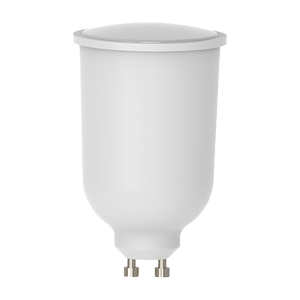

LED GU10 12W 38° 120° | GU10

HX-S12F-GU10 IC120D,HX-S12F-GU10 IC38D,HX-S12F-GU10 ICE38D,HX-S12F-GU10 ICE120D

Power: 12W
Body: PLA+Alum body
Diffuser: Polycarbonate
LED: Gold-wired with Copper stent
Driver: IC driver
Base: GU10
Beam angle: 38°,120°

Inquiry

TECHNICAL CHARACTERISTICS

Safety according to-Directive 2014/35/EU(LVD)
EN 62560: 2012+A1:2015+A11:2019
EN 62471: 2008
EN 62473 :2015

EMC according to- Directive 2014/30/EU(EMC)
EN 55015: 2019+A11:2020
EN 61547: 2009,
EN 61000-3-2:2014,
EN 61000-3-3:2013

ERP according to-Directive (EU) 2019/2020 and EEL (EU) 2019/2015

Code	Input	Power	PF	Total Lumen	C.R.I	Angle	C.C.T.
LED GU10 50/60Hz,12W
HX-S12F-GU10 ICE120D	165-265V	12W	0.5	1020lm	80	120°	3000K-4000K-6500K
HX-S12F-GU10 IC120D	165-265V	12W	0.5	1020lm	80	120°	3000K-4000K-6500K

Code	Input	Power	PF	Total Lumen	C.R.I	Angle	C.C.T.
LED GU10 50/60Hz,12W
HX-S12F-GU10 ICE38D	165-265V	12W	0.5	1020lm	80	38°	3000K-4000K-6500K
HX-S12F-GU10 IC38D	165-265V	12W	0.5	1020lm	80	38°	3000K-4000K-6500K
