UFO LED Highbay 100-200W_复制 | EC2

LHB-S100M1,LHB-S150M1,LHB-S200M1

To print

BASIC INFORMATION:

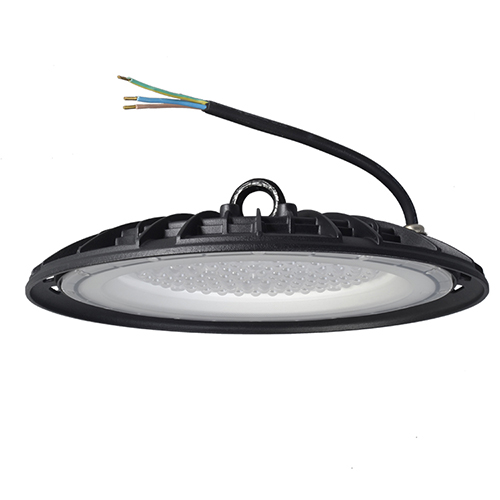

UFO LED high bay low bay light 100W 150W 200W
Wires: 3x1mm² H05RN-F rubber cable
LED board: Aluminium
LED: SANAN chip, SMD2835
Driver: IC, Linear IC,
Housing: Die-cast Aluminium body, PC lens
Application: Workshop, stadium, project lighting, etc.

top mid pic.png

TECHNICAL CHARACTERISTICS

CodeInputPower PF Lumen C.R.IC.C.T.IP GradeControl Mode
UFO LED HIGH BAY LIGHT 100W
LHB-S100EC220-240V100 W0.9511000lm703000KIP65Normal
LHB-S100EC220-240V100 W0.9511000lm704000KIP65Normal
LHB-S100EC220-240V100 W0.9511000lm706500KIP65Normal
CodeInputPower PF Lumen C.R.IC.C.T.IP GradeControl Mode
UFO LED HIGH BAY LIGHT 150W
LHB-S150EC220-240V150 W0.9516500lm703000KIP65Normal
LHB-S150EC220-240V150 W0.9516500lm704000KIP65Normal
LHB-S150EC220-240V150 W0.9516500lm706500KIP65Normal
CodeInputPower PF Lumen C.R.IC.C.T.IP GradeControl Mode
UFO LED HIGH BAY LIGHT 200W
LHB-S200EC220-240V200 W0.9522000lm703000KIP65Normal
LHB-S200EC220-240V200 W0.9522000lm704000KIP65Normal
LHB-S200EC220-240V200 W0.9522000lm706500KIP65Normal
